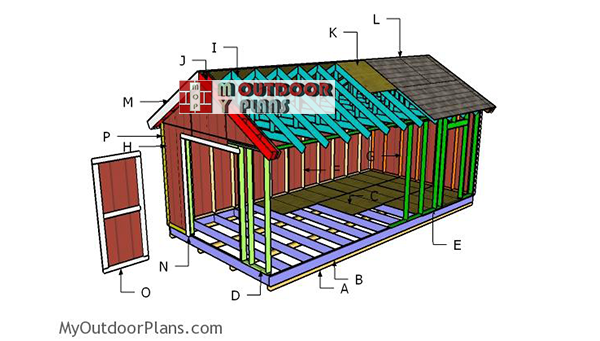

Free 12x24 Shed Plans: A Comprehensive Guide to Constructing a Multi-Purpose Backyard Building
This document provides detailed, albeit simplified, plans for constructing a 12x24 foot multi-purpose shed. While these plans offer a foundation for your project, professional consultation is recommended, especially for those with limited construction experience. Always prioritize safety and adhere to local building codes throughout the construction process.
I. Foundation Considerations
A stable foundation is paramount for any outbuilding. The choice of foundation depends on several factors, including soil conditions, local climate, and the intended use of the shed. For a 12x24 shed, three primary foundation options are viable:
A. Concrete Slab Foundation
This offers the most robust and durable foundation. It requires excavation, the placement of a compacted gravel base, and pouring a reinforced concrete slab. This is generally the most expensive option but provides excellent longevity and resistance to shifting ground.
- Excavation: Dig a trench 4-6 inches deep, encompassing the entire shed footprint, plus an additional 6 inches on each side for the formwork.
- Gravel Base: Compact a 4-inch layer of gravel within the trench.
- Formwork: Construct forms using pressure-treated lumber, ensuring they are level and plumb.
- Rebar Reinforcement: Place a grid of rebar within the forms, ensuring adequate overlap at the joints.
- Concrete Pour: Pour the concrete, ensuring it’s properly vibrated to eliminate air pockets. Allow ample curing time (at least 7 days) before proceeding.
B. Pier and Beam Foundation
This is a more economical option, suitable for well-drained soil. It involves setting concrete piers at regular intervals, supporting a framework of pressure-treated lumber beams.
- Pier Placement: Dig holes for the piers, ensuring they are positioned at corners and along the perimeter, approximately every 6-8 feet.
- Concrete Piers: Fill the holes with concrete, allowing them to set completely.
- Beam Framework: Construct a framework of pressure-treated lumber beams, resting on the concrete piers. Use appropriate fasteners to secure the beams.
- Leveling: Ensure the beam framework is perfectly level before proceeding to the next stage.
C. Gravel Foundation
This is the simplest and least expensive option, but it's suitable only for well-drained soil and lighter sheds. It involves creating a compacted gravel base, providing some drainage and a level surface.
- Excavation: Excavate to a depth of approximately 4-6 inches.
- Gravel Base: Compact a 6-12 inch layer of gravel, depending on soil conditions.
- Leveling: Use a level to ensure a completely flat surface.
- Weed Barrier: Consider adding a weed barrier membrane to prevent weed growth.
II. Framing the Shed
The framing forms the structural skeleton of the shed. Using pressure-treated lumber is crucial for durability and resistance to rot.
A. Floor Framing
Construct the floor frame using pressure-treated lumber joists, spaced at 16-inch intervals. Securely fasten the joists to the foundation using appropriate fasteners. For added strength, consider using plywood subflooring.
B. Wall Framing
Construct the walls using 2x4 studs, spaced at 16-inch intervals. Use a plumb bob and level to ensure that the walls are perfectly vertical. The walls should be braced for stability during construction.
C. Roof Framing
The roof framing depends on the chosen roof style. A simple gable roof is recommended for ease of construction. Construct the rafters, ensuring proper overhang. Use appropriate fasteners and bracing to ensure structural integrity.
III. Exterior Sheathing and Roofing
The exterior sheathing protects the framing and provides a surface for the siding. The roofing material should be chosen based on budget and desired aesthetics.
A. Sheathing
Use OSB (Oriented Strand Board) or plywood sheathing for the walls and roof. Ensure proper overlapping and fastening to prevent moisture intrusion.
B. Roofing
Common roofing options include asphalt shingles, metal roofing, and corrugated plastic sheeting. Follow the manufacturer's instructions for installation. Proper ventilation is crucial to prevent moisture buildup.
IV. Siding and Trim
The siding protects the sheathing and enhances the aesthetic appeal of the shed. Various siding options are available, including vinyl, wood, and metal. Trim adds finishing touches and protects vulnerable edges.
V. Doors and Windows
Install the door and windows according to the manufacturer's instructions. Ensure proper sealing and weatherstripping to prevent drafts and moisture intrusion. Consider security features like strong locks and reinforced frames.
VI. Interior Finishing
The interior finishing depends on the intended use of the shed. Options include drywall, plywood paneling, or even exposed framing. Insulation can significantly improve climate control. Proper electrical wiring and lighting should be installed according to local codes.
VII. Multi-Purpose Design Considerations
The 12x24 dimensions offer ample space for multiple purposes. Consider incorporating features such as:
- Workbenches: Dedicated work areas for hobbies or repairs.
- Shelving: Maximize storage space with adjustable shelving units.
- Electrical Outlets: Provide power for tools and equipment.
- Lighting: Adequate lighting enhances usability.
- Ventilation: Maintain a comfortable and dry interior.
Disclaimer: These plans are for informational purposes only. Always consult with a qualified professional before commencing any construction project. Failure to adhere to local building codes and safety regulations can result in structural failure, injury, or legal repercussions. The author assumes no responsibility for any damages or injuries resulting from the use of these plans.
